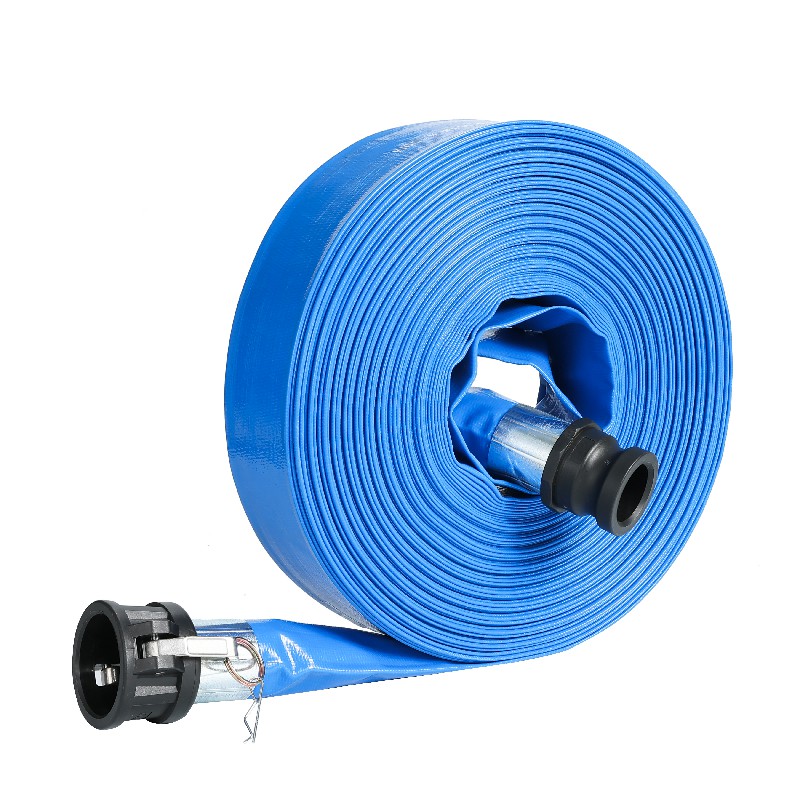

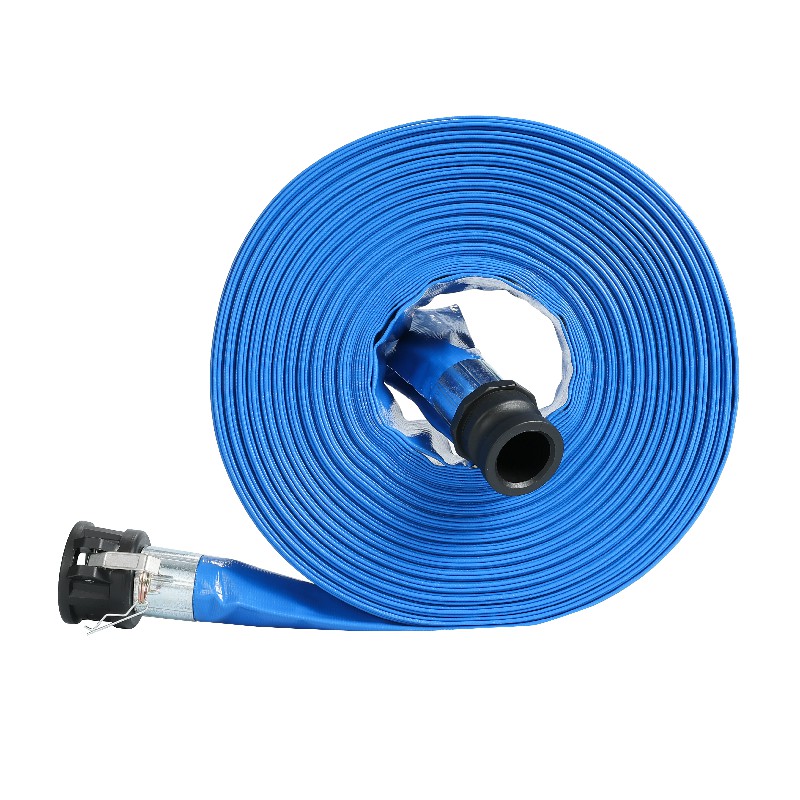

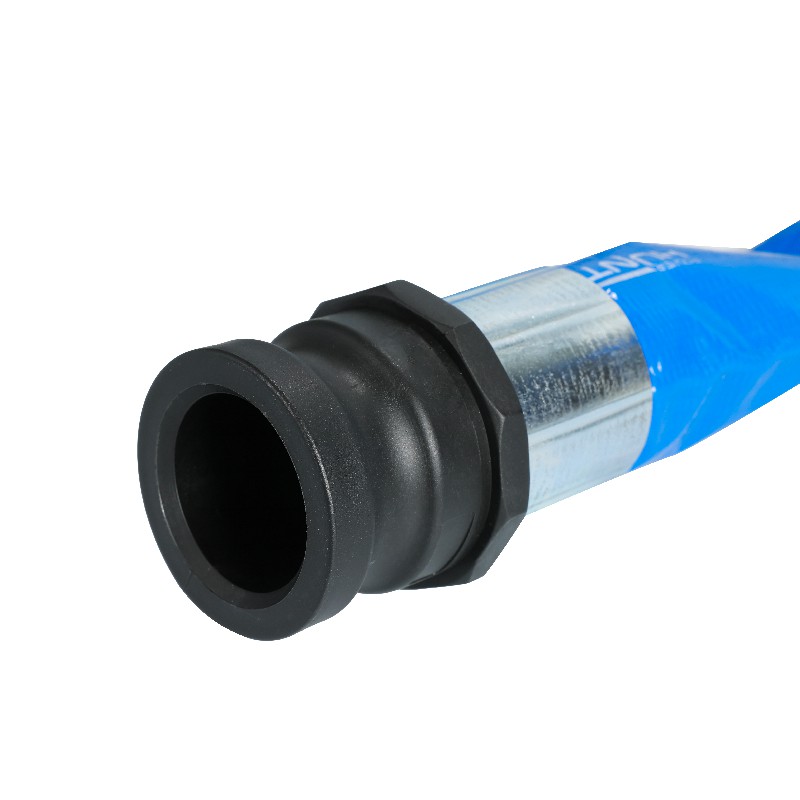

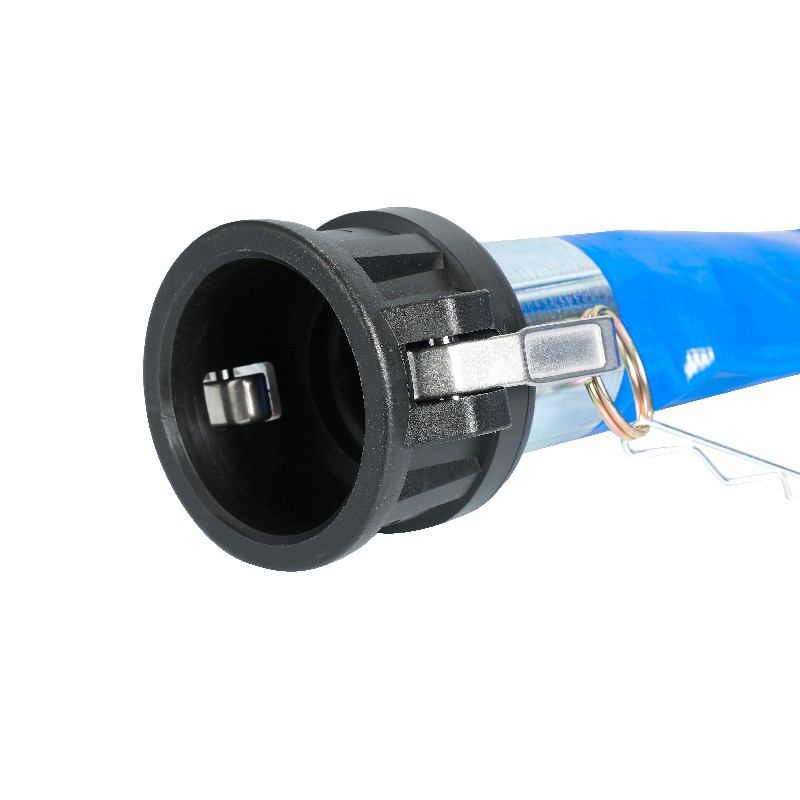

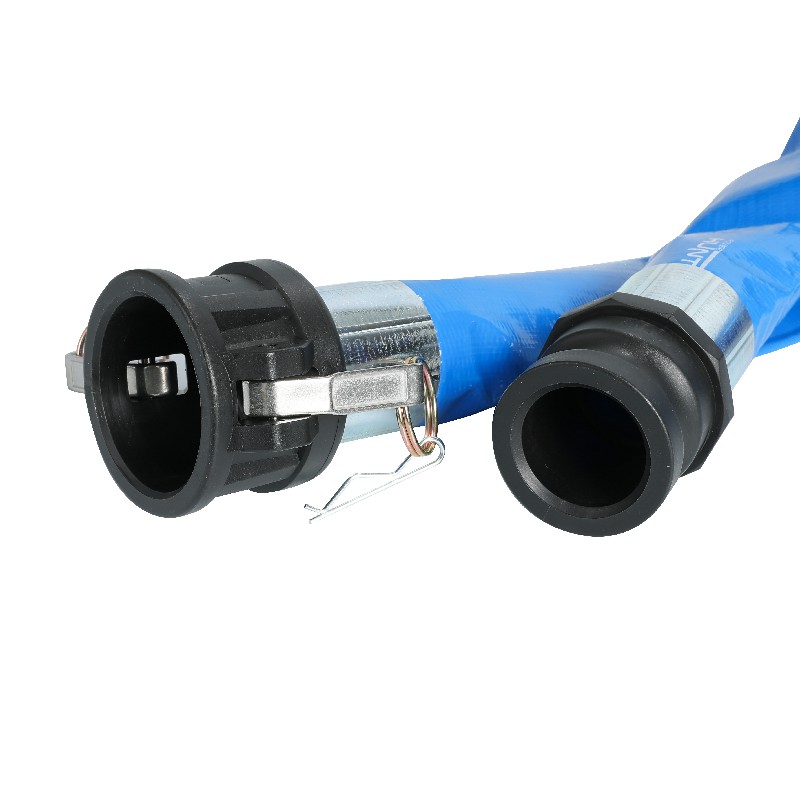

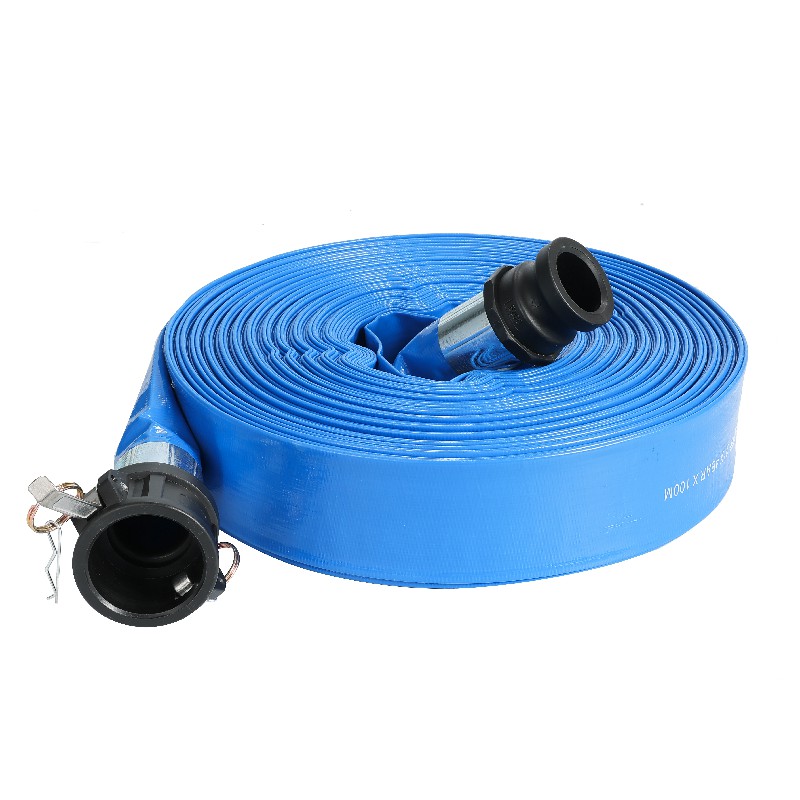

Medium Duty Lay Flat Hose

A medium-duty lay flat hose is a type of hose designed for water transfer and irrigation purposes. This hose is characterized by its ability to be laid flat when not in use, allowing for easy storage and transportation.

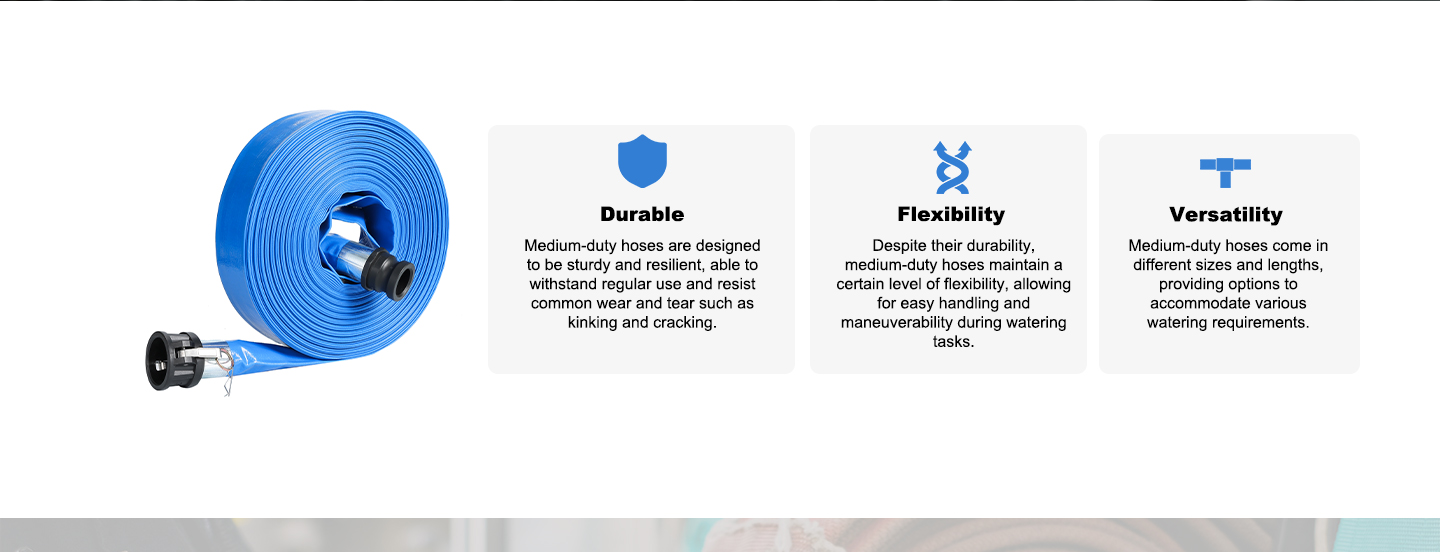

The medium-duty designation indicates that the hose is suitable for average water pressure and flow requirements. It strikes a balance between lightweight and durable construction, making it versatile for various applications.

A lay flat hose is typically made from materials such as PVC (polyvinyl chloride) or TPU (thermoplastic polyurethane). These materials offer flexibility, resistance to abrasion, and UV protection, ensuring the hose can withstand outdoor conditions.

In summary, a medium-duty lay flat hose provides a convenient solution for water transfer and irrigation tasks. Its flat and flexible design allows for easy storage and transportation. Whether used in agriculture, construction, or other industries, the medium-duty lay flat hose offers durability and versatility for various water-related applications.

Availability:



Inquire Add to Basket

Product Description

Detail_01 Detail_02 Detail_03 Detail_04 Detail_05 Detail_06 Detail_07

Our Product Specifications

Note:T&T hose is available in a wide variety of lengths, dimensions and fittings to meet all your needs.

Item No	Type	Hose Dimension		Working Pressure	Burst Pressure	Net Weight	Measure
Item No	Type	I.D	Length	Working Pressure	Burst Pressure	Net Weight	Measure
	Inch	mm	m/roll	Bar	Bar	Kg/m	m³
TLP-08025	1"	25	100	8	25	0.15	0.0186
TLP-08032	1-1/4"	32	100	8	25	0.17	0.0223
TLP-08040	1-1/2"	38	100	8	25	0.2	0.0261
TLP-04050	2"	51	100	4	12	0.22	0.0357
TLP-06050	2"	51	100	6	18	28	0.0357
TLP-08050	2"	51	100	8	25	0.3	0.038
TLP-04064	2-1/2"	64	100	4	13	0.3	0.0465
TLP-06064	2-1/2"	64	100	6	18	0.42	0.0465
TLP-03075	3"	76	100	3	9	0.4	0.061
TLP-04075	3"	76	100	4	12	048	0.063
TLP-06075	3"	76	100	6	18	0.55	0.063
TLP-08075	3"	76	100	8	25	0.6	0.0696
TLP-03100	4"	102	100	3	9	0.53	0.0833
TLP-04100	4"	102	100	4	11	062	0.0833
TLP-06100	4"	102	101	6	18	0.95	0.086
TLP-03125	5"	125	102	3	11	0.75	0.109
TLP-03150	6"	152	100	3	11	0.9	0.141
TLP-03200	8"	200	100	3	10	1.8	0.212
